Q6AC

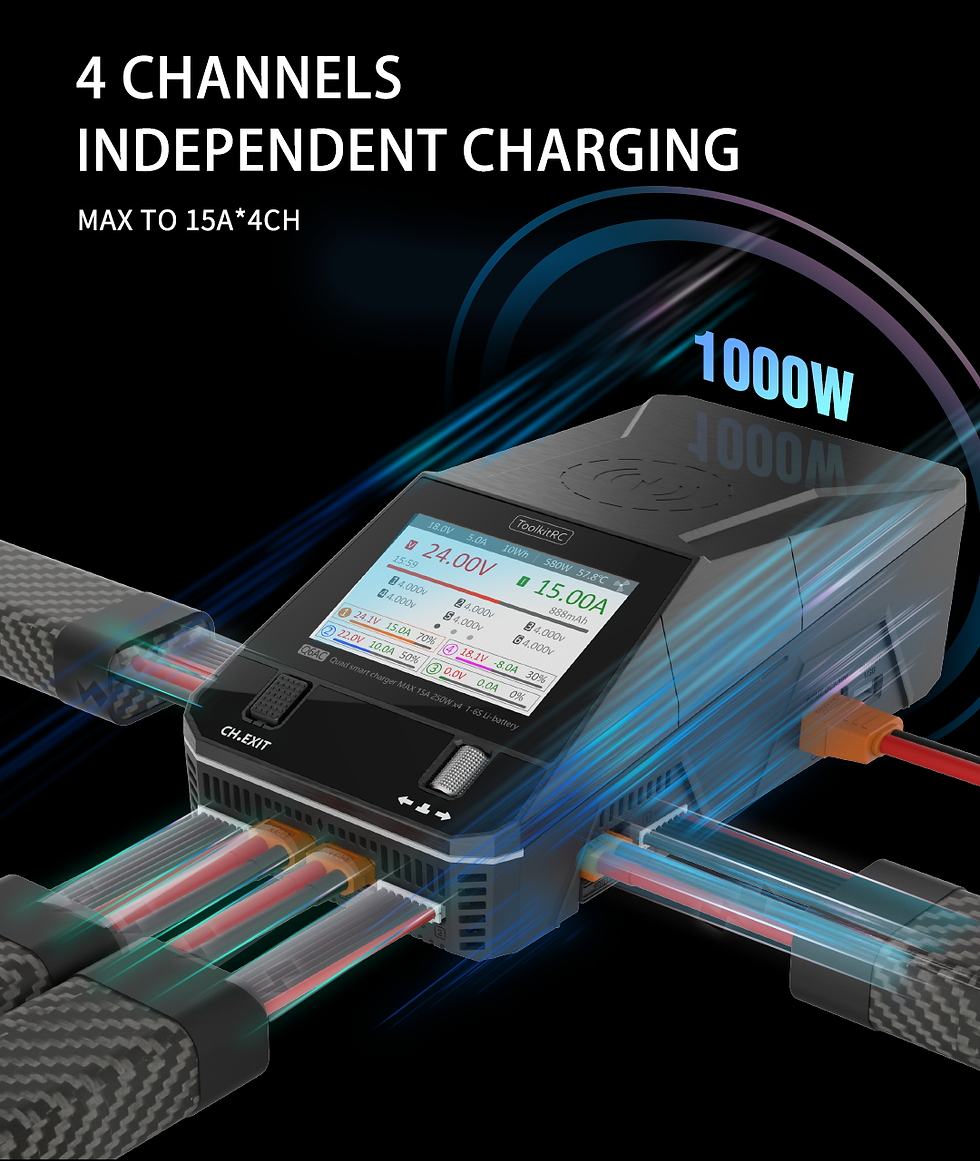

Powerful 4-Channel Independent Charging
Supports up to 15A per channel across 4 channels, allowing for fast and efficient multi-battery charging with full independence.
Dual AC/DC Input
Features a built-in 400W AC power supply for plug-and-play convenience, and supports up to 1000W DC input via an XT90 connector for high-power charging in the field.
Multi-Protocol Wireless Charging
Experience the convenience of wireless charging for compatible devices—eliminating cable clutter and streamlining your workspace.

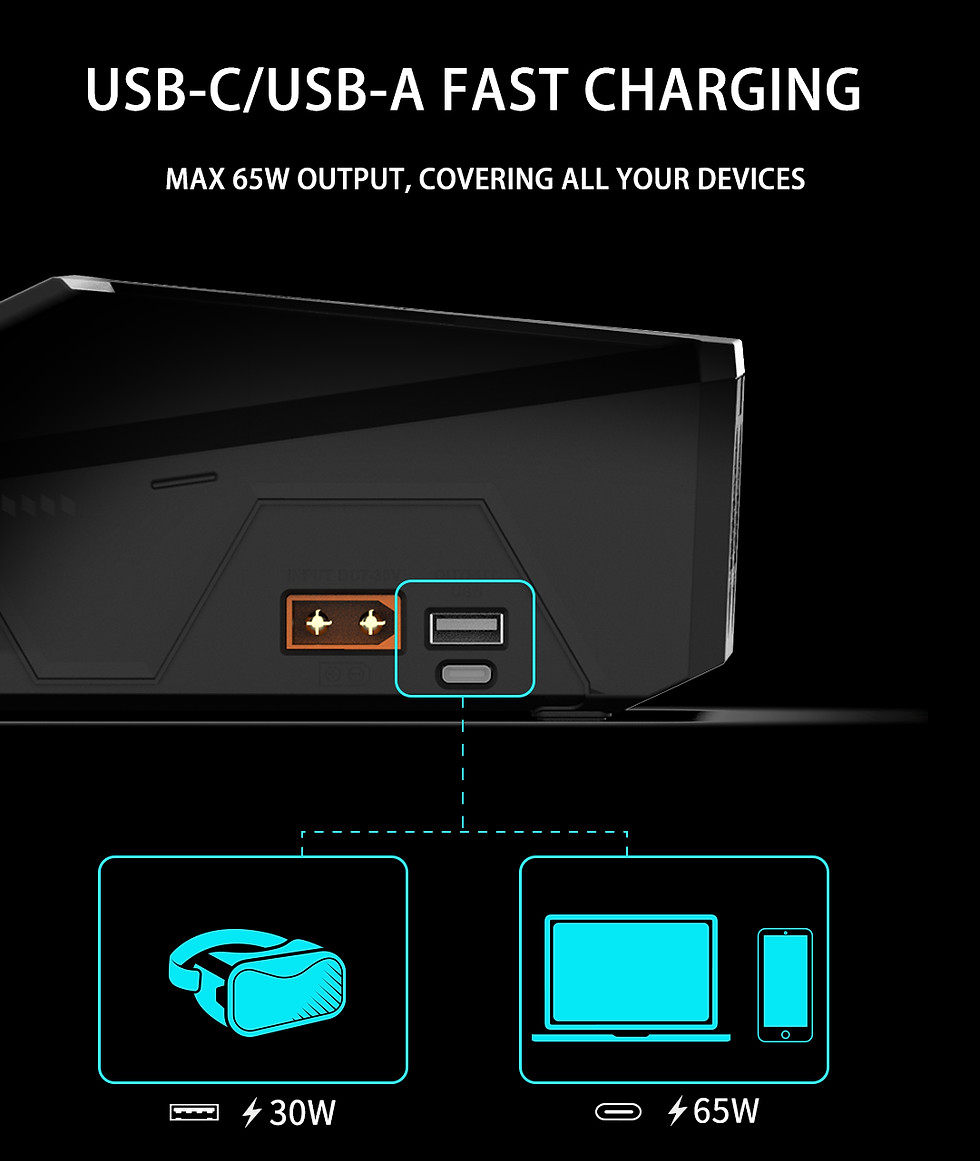

Fast Charging via USB-C and USB-A
Equipped with USB-C and USB-A ports, the charger delivers up to 65W of fast charging power, supporting a wide range of mobile devices and accessories.
Adapter-Free Port Design
Easily switch between XT30 and XT60 connectors without the need for additional adapters—offering unmatched versatility for different battery types.
Patent No.: ZL202122365465.5
Smart Cooling System
The charger features automated fan control, dynamically adjusting fan speed based on real-time heat output for optimal thermal performance and reduced noise.
Intuitive One-Touch Interface
A redesigned user interface provides single-channel detailed views or a full four-channel overview, all accessible with a single touch for fast, intuitive control.

Q6AC

SKU: TK12900
₪1,400.00Price
Quantity
  • Category Specification
    Input Voltage AC 100–240V @ MAX 400W
    DC 7–30V @ MAX 50A, 1200W
    Battery Type LiPo, LiHV, LiFe, Lilon @ 1–6S
    NiMH @ 1–16S
    Pb @ 1–10S
    Balance Current 800mA @ 2–6S
    Balance Accuracy < 0.005V
    Charging Power 0.1–15A @ 250W ×4 (Asynchronous mode)
    0.1–25A @ 500W (CH2/CH3 Synchronous)
    Discharging Power 250W @ MAX 15A ×4 (Recycle mode)
    15W @ 3A ×4 (Normal mode)
    Voltage Range 1.0V–5.0V @ 1–6S
    Internal Resistance 1–100mΩ @ 1–6S
    Type-C Fast Charging 65W
    USB Output 30W (Upgraded)
    Wireless Charging MAX 10W
    Product Size 220×111×82 mm
    Product Weight 1150g
    Packing Size 230×125×95 mm
    Packaging Weight 1400g
    LCD IPS 3.5″ LCD, 480×320 px

  • Q6AC Charger × 1, AC Input Cable × 1, DC Input Cable with XT60 Female × 1, USB Cable × 1,  Quick Manual × 1, Screen Protector × 1
